Gelince Haber VerAutel Robotics' EVO Lite Enterprise series offers many advantages, such as lightweight and portable design, quick deployment and simple control for industrial applications. AI target recognition feature allows the drone to easily identify and automatically map various targets. Three-way obstacle avoidance in binocular vision ensures safe flying.
The EVO Lite 640T Enterprise has a dual gimbal system, with a visible light camera for clear and detailed images, while a thermal imaging camera helps with decision-making during operations. Combined with professional aviation software, Autel Enterprise offers ease of use, user-friendly interaction, flexible one-person deployment, and efficient application in scenarios such as public safety and emergency response.

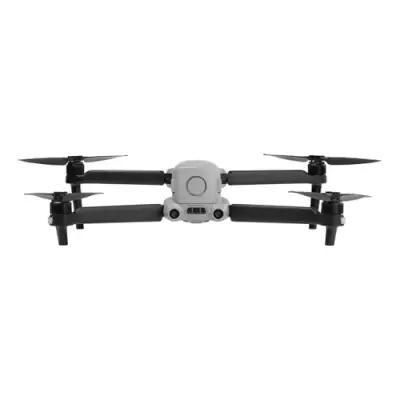

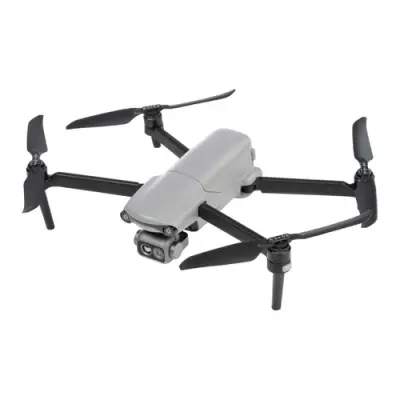

The EVO Lite Enterprise Series drones weigh just 866 grams and have folded dimensions of just 210*123*95 mm, making them easy to carry in a backpack. Their simple operation makes them ideal for efficient single-operator missions.
Autel Enterprise is a professional flight mission software designed for industrial applications by Autel Robotics. It features an optimized interaction design for simple and efficient operation, an editable toolbar design for intuitive use, and integrates intelligent and professional functions to take full advantage of the industrial value of the EVO Lite Enterprise Series aircraft.
Split screen display: Support for visible light, infrared or map allows simultaneous display of two-channel image on the screen, providing comprehensive information by comparing.
Customizable toolbar: Customize the menu toolbar in the application for quick access to frequently used functions, meeting the personalized needs of the user.
Offline maps: solves the problem of failed map loading in environments without network access or with poor network access by supporting offline maps to facilitate accurate flight positioning.
Through the use of wide-angle or infrared lenses combined with intelligent artificial intelligence algorithms and a self-learning system, the aircraft can automatically recognize and locate people, cars and boats, displaying their location on a map.
Equipped with a dual gimbal, the wide-angle visible light camera offers a wide field of view and vivid, high-resolution images, while the infrared thermal camera uses high-resolution thermal imaging algorithms, enabling clear and detailed identification of the heat source.
Resolution 640*512 // Focal length 9.1 mm // 16 times digital zoom
Temperature measurement range: -20°C to 150°C / 0°C to 550°C
Temperature measurement accuracy: ±3°C or ±3% of the reading (whichever is greater)
1/2 inch CMOS // 48 million pixels // Aperture F2.8 // 16 times digital zoom
Maximum image size 8000*6000
Maximum video resolution 4K 30P
Equipped with Autel SkyLink image transmission technology for dual signal, dual reception system, anti-interference image transmission capability has been improved, and transmission distance reaches up to 12 kilometers. Supports adaptive frequency transmission 2.4 GHz/5.2 GHz/5.8 GHz , automatically selecting the best channel based on electromagnetic interference, providing strong anti-interference capabilities. And real-time video transmission quality 1080P/30FPS. Delay less than 200 milliseconds.
The drone is equipped with wide-angle vision sensors on the front, rear and bottom for reliable flight safety.
Small but mighty. The exceptional flight performance of EVO Lite Enterprise Series drones effortlessly handles a variety of challenges in multiple scenarios, significantly increasing the efficiency of single-person mission flights.
40 minutes endurance
18 meters per second Maximum horizontal flight speed
3000 meters Maximum takeoff height
Open Mobile SDK provides powerful, comprehensive and easy-to-use control and service interfaces, increasing development efficiency and enabling custom solution scenarios.
Privacy: User consent is required to upload flight logs, locations and other user privacy data.
Encrypted storage: Supports AES encryption for photos, videos and flight logs. Access to them requires a password.
Live video streaming: supports RTMP and GB28181* protocols for live streaming, allowing real-time remote viewing and analysis. *GB28181 live video streaming protocol function awaits future updates.
Set composition:
Design
| Model | Drone |
| Product color | Gray |
| Number of rotors | 4 wirn. |
| Number of propeller blades | 2 |
| Wheelbase | 36.8 cm |
| Number of cameras | 2 |
| Thermal imaging camera | Yes |
Features
| Maximum speed | 18 m/s |
| Maximum operating range | 12000 m |
| Frequency band | 2.4 GHz/5.2 GHz/5.8 GHz/900 MHz |
| Maximum flight time | 40 min |
| Number of axles | 3 |
| Maximum takeoff height | 3000 m |
| Maximum wind resistance (Takeoff and landing) | 12 m/s |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Type of sensor system | Multidirectional |
| Ultrasonic sensor | Yes |
Camera
| Megapixels | 48 MP |
| Supported video modes | 1080p4K |
| Video transmission | Yes |
| Maximum number of frames per second | 30 fps |
| Live view | Yes |
| Image resolution | 8000 x 6000 pixels |
| Sensor | CMOS 1/2" |
| Fixed focal length | 9.1 mm |
| Aperture | F2.8 |
Memory
| Memory card slot(s) | Yes |
| Supported memory cards | MicroSD |
| Maximum memory card size | 256 GB |
| Built-in memory capacity | 8 GB |
Features of management
| Motion control functions |
Slanted Front Turn left Turn right Up Back |
| Flight modes | Tracking mode |
| Auto start function | Yes |
| Auto return function | Yes |
| Auto landing function | Yes |
| Obstacle detection system | Yes |
Transmitter
| Transmission system | Autel SkyLink |
| Operating frequency (RF) | 902-928 MHz, (FCC), 2.400-2.4835 GHz, 5.725-5.850 GHz |
| Image transmission - Transmitter power (EIRP) | CE: ≤20dBm -2.4G, ≤14dBm - 5.8GFCC: ≤33dBmSRRC: ≤20dBm - 2.4G, ≤33dBm - 5.8G/5.7G |
| Number of antennas | 2 |
| Built-in WiFi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5. |
| Bluetooth transmitter power | 11 dBm |
| Built-in display | Yes |
| Screen diagonal | 6,4" |
| Touchscreen | Yes |
| HD Type | UHD |
| Display type | LCD |
| Removable battery | Yes |
Battery
| Battery type | Lithium-polymer (LiPo) |
| Battery life (transmitter) | 4.5 hours. |
| Charging time (transmitter) | 120 min |
Power
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
Working conditions
| Temperature range (operation) | -10 - 40 °C |
| IP degree of protection | IP43 |
Weight and dimensions
| Dimensions of the unfolded product (SxGxW) | 433 x 516 x 95 mm |
| Dimensions of the folded product | 210 x 123 x 95 mm |
| Product weight | 866 g |
| Dimensions of the transmitter | 303 x 190 x 87 mm |
| Weight of the transmitter | 1.15 kg |
Package contents
| Memory card included | 32 GB |
| Kit contents | Autel Smart Controller SE V2 |
| Battery charger | Yes |
| Wires | USB Type-C to USB Type-A |
| Car charger | Yes |
| Number of batteries | 1 |
| Spare propeller(s) | 2 |
Other features
| Control with an Android device | Yes |
| Compatible with iOS | Yes |
| Supported applications | Autel Sky |
| Ease of use | Yes |
